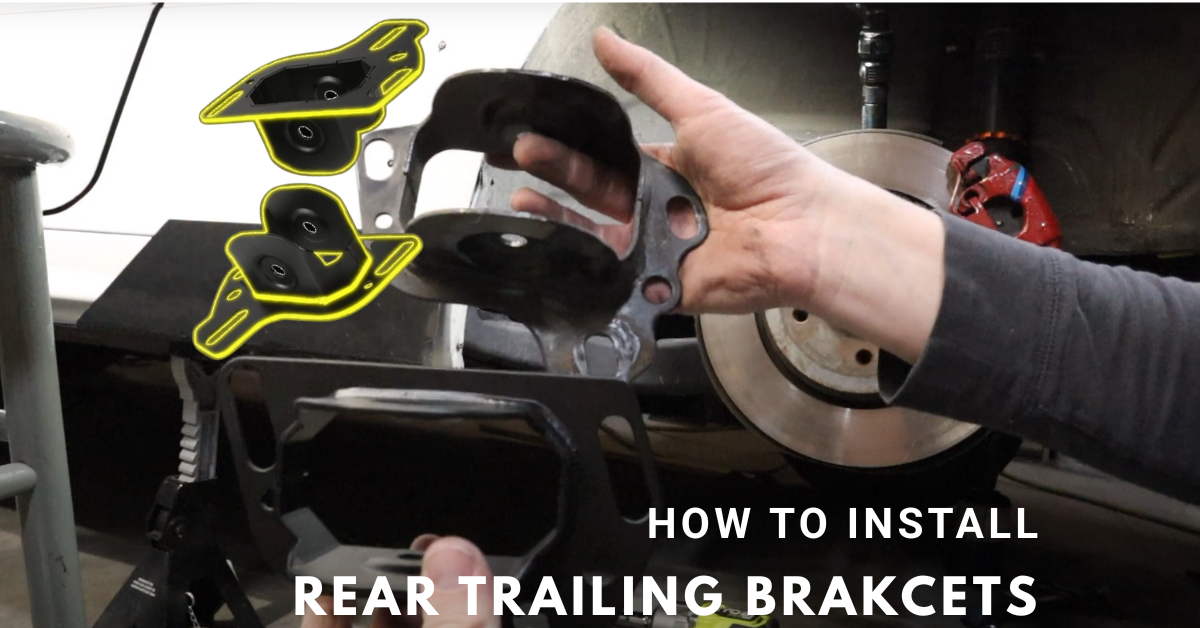

Do you know how to install the rear trailing arm bracket for your BMW? We have redesigned the rear trailing arm bracket to provide more adjustable space, which can significantly improve the vehicle's handling, stability and overall driving experience. Of course, this process requires some mechanical knowledge and tools, but for DIY enthusiasts, as long as they have the right guidance, the installation will not be difficult. The following is a guide to help you complete the replacement.
Tools and Materials Needed
Before you begin, make sure you have the following items ready:
1. Power screwdriver
2. Torque wrench
3. Jack and jack stand
4. Penetrating oil
5. New rear trailing arm bracket
6. Safety goggles and gloves
Safety Precautions
IMPORTANT: When servicing your vehicle, always put safety first:
1. Park the vehicle on a level surface/workshop and apply the parking brake
2. Allow the engine and exhaust system to cool completely
3. Use a suitable jack stand/lift - never rely solely on a hydraulic jack
4. Wear eye protection and gloves throughout the process
5. Work in a well-ventilated area
Step-by-Step Installation Process
Step 1: Prepare your vehicle
1. Jack up the vehicle: Use a jack/lift to raise the rear of the vehicle and support it securely.
2. Remove the wheel: Remove the rear wheel to access the suspension components.
3. Apply penetrating oil: Spray penetrating oil on all bolts and joints that need to be removed to ease the removal process.
Step 2: Locate the trailing arm bracket
The trailing arm bracket is usually located on the rear suspension assembly and is used to connect the trailing arm to the vehicle's subframe or body. Since the location may vary from model to model, please consult the specific repair manual of your BMW for its exact location.
Step 3: Remove the Old Bracket
1. Identify the mounting bolts: Locate all the bolts that secure the bracket to the trailing arm and frame.
2. Remove the bolts carefully: Loosen all the bolts before removing completely. This will avoid unnecessary stress on the components.
3. If the old trailing arm is stuck due to rust, you may need to use a hammer to gently tap it to remove it.
4. Handle the components with care: When removing the old bracket, pay attention to the surrounding components.
Step 4: Install the New Bracket
1. Install the new bracket: Align the new bracket with the original bracket, ensuring the installation direction is correct.
2. Mounting bolts: Tighten all mounting bolts with an electric screwdriver, ensuring that none are loose.
3. Torque specification: Tighten all bolts to the torque value specified by the manufacturer (usually found in your repair manual).
Note: Common torque specifications: 80-120 Nm for the main mounting bolts (please confirm according to your specific model).
Step 5: Final Checks and Reassembly
1. Check the work: Check carefully that all bolts are properly tightened and the brackets are securely installed.
2. Reinstall the wheel: Reinstall the wheel and lower the vehicle.
3. Tighten the wheel nuts: Tighten the wheel nuts to the specified value in a star-shaped tightening pattern.
Model-Specific Considerations
The design and installation process of trailing arm brackets may vary between different BMW models:
Our model is suitable for BMW E36 E46 E86/E86 E89 Z4, so installation is simple.
- E36/E46 series: installation is usually simple
- E90/E92/E93 series: additional steps may be required due to the complex suspension design
- F series (F30, F32, etc.): modern designs may contain electronic components that require special attention
When to seek professional help
If you encounter the following situations, please consider taking your BMW vehicle to a professional technician for repair/be prepared before replacement to ensure safety:
- You lack experience in suspension repair
- You encounter rusty or stuck bolts that cannot be turned
- You are not good at handling rear suspension components
- The work requires special tools that you do not have
In a word
Installing a rear trailing arm bracket on your BMW is a solid DIY job that boosts your ride’s performance and safety. This guide breaks down the install—you just need the right tools, good prep, and some patience. I’m confident it won’t give you much trouble. Just make sure to prioritize your safety and the car’s throughout the whole process.
